Η εταιρεία μας Αγγελάτος Γ. & Σια Ο.Ε. έχει μια μεγάλη
γκάμα μηχανών ηλεκτροσυγκόλλησης και κοπής μετάλλων της Ιταλικής C.E.A. για να καλύψει και τις πιο απαιτητικές ανάγκες σας
- Μηχανές ηλεκτροδίου από 100 έως 500 Α.
- Μηχανές σύρματος (MIG) Compact και με αποσπώμενο τροφοδότη από 150 έως 500 Α.
- Μηχανές (TIG) D.C. και AC/DC από 150 έως 400 Α.
- Μηχανές κοπής plasma
Επιλέξτε κατηγορία απο τα παρακάτω εικονίδια για να μεταβείτε απ΄ευθείας. | |||||
BUILT-IN WIRE FEEDER - STEP ADJUSTMENT | |||||
SMARTMIG M20 - T21 - T25 product data Series of semi-automatic welding machines with undergear and built-in professional wire feeder, suitable to be used with CO2 gas and mixture. They are recommended for medium fabrication work, car body repairs, agriculture and maintenance. Robust, easy to use and with innovative design, SMARTMIGs "M" (single phase) and SMARTMIGs "T" (three phase) provide excellent welding performance also with aluminium and stainless steel wires |
|||||
Technical data |
|
SMARTMIG M20 |
SMARTMIG T21 |
SMARTMIG T25 |
|
Single phase input 50/60Hz |
V |
230 |
--- |
--- |
|
Three phase input 50/60Hz |
V |
--- |
230/400 |
230/400 |
|
Input Power @ I2 Max |
kVA |
11,5 |
7,6 |
9,7 |
|
Delayed Fuse (I2 @ 60%) |
A |
25 |
16/10 |
16/10 |
|
Power Factor |
|
0,63 |
0,75 |
0,75 |
|
cos f |
|
0,63 |
0,75 |
0,75 |
|
Efficiency Degree |
|
0,66 |
0,86 |
0,86 |
|
Open Circuit Voltage |
V |
19,5-40 |
17-36 |
17-38 |
|
Adjustament positions |
No. |
6 |
7 |
10 |
|
Current range |
A |
30 - 180 |
25-200 |
25-250 |
|
Duty Cycle at |
100%
|
A |
70 |
100 |
120 |
Wires |
|
0,6-1,0 |
0,6-1,0 |
0,6-1,2 |
|
Standards |
|
LVD
2006/95/EC |
|||
Protection Class |
IP |
23S |
23S |
23S |
|
Insulation Class |
|
H |
H |
H |
|
Dimensions |
mm |
p |
830 |
830 |
830 |
Weight |
Kg |
42 |
47 |
53 |
COMPACT 240Mproduct data COMPACT 270-310-360-364-410 Aseries of industrial semiautomatic welding equipment with built-in wire feeder, suitable for professional and industrial applications. COMPACT power sources, in their innovative and user friendly design, ensure excellent welding characteristics on any material, aluminium and stainless steel included, by granting a very stable arc in any welding position. Robust and easy-touse, COMPACT power sources are suitable to be used in industry, fabrication work, car body repair, agriculture and maintenance. |
||||||||
Technical data |
|
COMPACT 240M |
COMPACT 270 |
COMPACT 310 |
COMPACT 360 |
COMPACT 364 |
COMPACT 410 |
|
Single phase input 50/60Hz |
V |
230 |
- |
- |
- |
- |
- |
|
Three phase input 50/60Hz |
V |
- |
230/400 |
230/400 |
230/400 |
230/400 |
230/400 |
|
Input Power @ I2 Max |
kVA |
11,9 |
12 |
13,9 |
17,3 |
17,3 |
18,5 |
|
Delayed Fuse (I2 @ 60%) |
A |
25 |
16/10 |
25/16 |
25/20 |
25/20 |
35/20 |
|
Power Factor |
|
0,96 |
0,96 |
0,96 |
0,96 |
0,96 |
0,96 |
|
cos f |
|
0,96 |
0,96 |
0,96 |
0,96 |
0,96 |
0,96 |
|
Efficiency Degree |
|
0,58 |
0,65 |
0,69 |
0,66 |
0,66 |
0,73 |
|
Open Circuit Voltage |
V |
22-50 |
17-38 |
18-43,5 |
18,5-45 |
18,5-45 |
20-44 |
|
Adjustament positions |
No. |
7 |
10 |
10 |
14 |
14 |
20 |
|
Current range |
A |
50-250 |
25-250 |
30-300 |
45-350 |
45-350 |
60-400 |
|
Duty Cycle at |
100%
|
A |
110 |
140 |
170 |
200 |
200 |
240 |
Wires |
Ψ mm |
0,6-1,2 |
0,6-1,2 |
0,6-1,2 |
0,6-1,2 |
0,6-1,2 |
0,6-1,6 |
|
Standards |
|
ILVD
2006/95/EC |
||||||
Protection Class |
IP |
23S |
23S |
23S |
23S |
23S |
23S |
|
Insulation Class |
|
H |
H |
H |
H |
H |
H |
|
Dimensions |
mm |
p |
860 |
860 |
860 |
860 |
860 |
1060 |
Weight |
Kg |
59 |
67 |
70 |
83 |
83 |
109 |
|

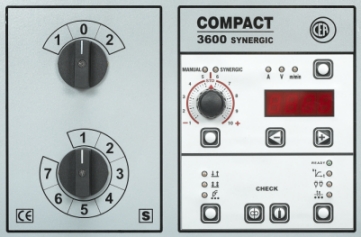

COMPACT
3100 SYN
COMPACT 3600 SYN COMPACT 4100 SYN product data COMPACT SYN power sources represent an evolution towards the simplification process of the welding operations by allowing, in a user friendly way, also non expert users to very easily adjust the welding parameters. Equipped with an innovative synergic microprocessor, based on the most modern digital technology, this series of machines has got several pre-set welding programs which, depending on |
|||||
Technical data |
|
COMPACT 3100 SYN |
COMPACT 3600 SYN |
COMPACT 4100 SYN |
|
Three phase input 50/60Hz |
V |
230/400 |
230/400 |
230/400 |
|
Input Power @ I2 Max |
kVA |
13,9 |
17,3 |
18,5 |
|
Delayed Fuse (I2 @ 60%) |
A |
25/16 |
25/20 |
35/20 |
|
Power Factor |
|
0,96 |
0,96 |
0,75 |
|
cos f |
|
0,96 |
0,96 |
0,96 |
|
Efficiency Degree |
|
0,69 |
0,66 |
0,73 |
|
Open Circuit Voltage |
V |
18-43,5 |
18,5-45 |
20-44 |
|
Adjustament positions |
No. |
10 |
14 |
20 |
|
Current range |
A |
30-300 |
45-350 |
60-400 |
|
Duty Cycle at |
100%
|
A |
170 |
200 |
240 |
Wires |
Ψ mm |
0,6-1,2 |
0,6-1,2 |
0,6-1,6 |
|
Standards |
|
LVD 2006/95/EC |
|||
Protection Class |
|
23S |
23S |
23S |
|
Insulation Class |
|
H |
H |
H |
|
Dimensions |
mm |
p |
860 |
860 |
1060 |
Weight |
Kg |
71 |
83 |
110 |
BUILT-IN WIRE FEEDER - ELECTRONIC ADJUSTMENT | |||||
TREO 1600 Synergic product
data MULTIFUNCTION SYNERGIC INVERTER FOR MIG/MAG, MMA AND TIG Wide versatility and portability are the main features of single-phase multifunction synergic power source TREO 1600 synergic. Based on the most modern IGBT inverter digital technology, TREO 1600 allows high quality MIG-MAG welding on all materials, by also granting optimal performances both in TIG by lift mode and in MMA welding. Innovative, versatile, light, easy-to-carry, user friendly, TREO 1600, thanks to its very high technological conception, is absolutely unique for all external or internal maintenance jobs, car body repairs, agriculture and very light fabrication works |
|||||
Technical data |
|
TREO 1600 SYNERGIC |
|||
MIG/MAG |
MMA |
TIG |
|||
1ph |
|||||
Mains voltage 50 / 60 Hz |
V |
230 |
|||
Input Power @ I2 Max |
kVA |
7,3 |
6,8 |
5,8 |
|
Delayed Fuse A (@ 60%) |
A |
25 |
32 |
20 |
|
Delayed Fuse A (@ 100%) |
A |
20 |
25 |
16 |
|
Power factor max |
0,57 |
||||
cos f |
0,99 |
||||
Efficency max |
0,83 |
0,84 |
0,78 |
||
Current range |
A |
5-160 |
10-130 |
5-160 |
|
Open circuit voltage |
V |
93 |
93 |
85 |
|
Welding currentat (40°C) |
100% |
A |
100 |
100 |
100 |
Wires |
mm |
0,6 - 1,0 |
|
|
|
Motor power |
W |
40 |
|
|
|
Rolls |
No. |
2 |
|
|
|
Wire reel type |
|
Ψ 200mm - 5 Kg |
|
|
|
Feeding speed |
m / min |
1 - 22 |
|
|
|
Electrode |
mm |
|
1,6
- 3,2 |
|
|
Tungsten Electrode |
mm |
|
|
1,0
- 3,2 |
|
Standards |
|
LVD
2006/95/EC |
|||
Protection Class |
IP |
IP 23S |
|||
Insulation Class |
H |
||||
Dimensions |
mm |
L |
500 |
||
Weight |
Kg |
16 |
TREO 1650 Synergic
product
data MULTIFUNCTION SYNERGIC INVERTER FOR MIG/MAG, MMA AND TIG Wide versatility and portability are the main features of single-phase multifunction synergic power source TREO 1650 Synergic. Based on the most modern IGBT inverter digital technology, TREO 1650 Synergic allows high quality MIG-MAG welding on all materials, by also granting optimal performances both in TIG by lift mode and in MMA welding. Innovative, versatile, light, easy-to-carry, user friendly, TREO 1650 Synergic, thanks to its very high technological conception, is absolutely unique for all external or internal maintenance jobs, car body repairs, agriculture and very light fabrication works |
|||||
Technical data |
|
TREO 1650 SYNERGIC |
|||
MIG/MAG |
TIG DC |
MMA |
|||
1ph |
|||||
Mains voltage 50 / 60 Hz |
V |
230 |
|||
Input Power @ I2 Max |
kVA |
4,5 |
2,8 |
4,0 |
|
Delayed Fuse A (@ I2 60%) |
A |
16 |
12 |
16 |
|
Power Factor |
0,99 |
||||
cos phi |
0,99 |
||||
Efficency |
0,78 |
0,77 |
0,82 |
||
Open circuit voltage |
V |
72 |
72 |
72 |
|
Current range |
A |
5-160 |
5-160 |
10-130 |
|
Welding currentat (40°C) |
100% |
A |
120 |
120 |
120 |
Wires |
mm |
0,6 - 1,0 |
|
|
|
Wire reel type |
|
Ψ 200mm - 5 Kg |
|
|
|
Standards |
|
LVD
2006/95/EC |
|||
Protection Class |
IP |
IP 23S |
|||
Insulation Class |
H |
||||
Dimensions |
mm |
L |
500 |
||
Weight |
Kg |
17,5 |
CONVEX 250 Basic
CONVEX 320 Basic CONVEX 3200 Vision product data MULTIFUNCTION INVERTER POWER SOURCES FOR MIG-MAG, MMA AND TIG WELDING Attractive, highly modern design chassis incorporating latest inverter technology and welding process fully digitally controlled are main features of CONVEX Vision and CONVEX Basic series. Innovative, technologically ahead, robust and easy-to-use, they offer premium quality welding in MIG-MAG, MMA and TIG by lift mode and represent the best solution for the most qualified welding applications in any industrial field requiring high precision and repeatability of the achieved results. CONVEX Vision series power sources, equipped with an innovative colour display digital synergic control, fully meet the needs of combining synergy with the total control of all the welding parameters. The easier-to-use CONVEX Basics are ideal for anybody looking for an innovative , modern and, at the same time, user friendly equipment, more similar in the adjustments of the parameters to a traditional power source. |
||||||
Technical data |
|
CONVEX 250 BASIC |
CONVEX
320 BASIC |
CONVEX
400 BASIC |
CONVEX
500 BASIC |
|
Three phase input 50/60Hz |
V |
400 |
400 |
400 |
400 |
|
Input Power @ I2 Max |
kVA |
9,8 |
14,3 |
18,6 |
24,4 |
|
Delayed Fuse (I2 @ 60%) |
A |
16 |
20 |
25 |
35 |
|
Power Factor |
- |
0,86 |
0,86 |
0,90 |
0,94 |
|
cos f |
- |
0,99 |
0,99 |
0,99 |
0,99 |
|
Efficiency Degree |
- |
0,85 |
0,85 |
0,88 |
0,89 |
|
Open Circuit Voltage |
V |
63 |
63 |
70 |
70 |
|
Current Range |
A |
10-250 |
10-320 |
10-400 |
10-500 |
|
Duty Cycle at (40°C) |
100% |
A |
170 |
240 |
310 |
380 |
Wire |
Ψ mm |
0,6 - 1,2 |
0,6 - 1,2 |
0,6 - 1,6 |
0,6 - 2,0 |
|
Standards |
|
LVD
2006/95/EC |
||||
Protection Class |
IP |
23S |
23S |
23S |
23S |
|
Insulation Class |
- |
H |
H |
H |
H |
|
Dimensions |
mm |
L |
660 |
660 |
660 |
660 |
Weight |
Kg |
29 |
35 |
45 |
52 |
MIG-MAG SEPARATE WIRE FEEDER - STEP ADJUSTMENT | |||
MAXI 255 M product data MAXI 255M power source, usable with TR1, TR2, TR4 wire feeders, is recommended for a wide range of applications such as lightmedium fabrication work, rural machinery repairs, maintenance, including hard surfacing. MAXI 255M, standard fitted with quick and easy polarity reversal, ensures excellent welding characteristic on any material, aluminium and stainless steel included, and is suitable for gas and gasless wire welding by granting a very stable arc in any position. |
|||
Technical data |
MAXI 255 M |
||
Single phase input 50/60Hz |
V |
230 |
|
Input Power @ I2 Max |
kVA |
11,8 |
|
Delayed Fuse (I2 @ 60%) |
A |
25 |
|
Power Factor |
|
0,8 |
|
cos f |
|
0,8 |
|
Efficiency Degree |
|
0,51 |
|
Open Circuit Voltage |
V |
23-50 |
|
Adjustament positions |
No. |
7 |
|
Current range |
A |
50-250 |
|
Duty Cycle at |
100% |
A |
110 |
Wires |
Ψ mm |
0,6-1,2 |
|
Standards |
|
LVD 2006/95/EC |
|
Protection Class |
IP |
23S |
|
Insulation Class |
|
H |
|
Dimensions |
mm |
p |
1020 |
Weight |
Kg |
62 |
MAXI 315 - 405 - 505 product data Three-phase semi-automatic welding equipment, with separate wire feeder, recommended for industrial applications, medium and large fabrication work . MAXI power sources, usable with a wide selection of wire feeders and different length interconnecting cables, are the most complete solution for any job and ensure excellent welding performances on any thickness by granting a very stable arc in any welding position. The range is completed by MAXI 4005 and 5005 synergic machines equipped with ES 5 digital feeder with preset welding programs. |
|||||
Technical data |
MAXI |
MAXI |
MAXI |
||
Three phase input 50/60Hz |
V |
230/400 |
230/400 |
230/400 |
|
Input Power @ I2 Max |
kVA |
13,8 |
19 |
24,2 |
|
Delayed Fuse (I2 @ 60%) |
A |
16/10 |
35/20 |
40/25 |
|
Power Factor |
|
0,95 |
0,96 |
0,97 |
|
cos f |
|
0,95 |
0,96 |
0,97 |
|
Efficiency Degree |
|
0,66 |
0,75 |
0,71 |
|
Open Circuit Voltage |
V |
18-43,5 |
20-44 |
19-51 |
|
Adjustament positions |
No. |
10 |
20 |
30 |
|
Current range |
A |
30-300 |
60-400 |
60-500 |
|
Duty Cycle at |
100% |
A |
170 |
230 |
300 |
Wires |
|
0,6-1,2 |
0,6-1,6 |
0,8-2,0 |
|
Standards |
|
LVD 2006/95/EC |
|||
Protection Class |
IP |
23 |
23 |
23 |
|
Insulation Class |
|
H |
H |
H |
|
Dimensions |
mm |
p |
1020 |
1060 |
1060 |
Weight |
Kg |
70 |
99 |
113 |
MAXI 4005 - 5005 product data Synergic MAXI 4005 and 5005 welding equipment fitted with ES 5 feeder allow, in a user friendly way, also non expert users to very easily adjust the welding parameters. The ES 5 feeder, thanks to latest and innovative microprocessor based digital technology, chooses, within preset programs, the best welding parameters according to used material, gas and wire diameter, thus enabling high quality MIG-MAG welding on any material. Depending on used material thickness, an easy-to-read table shows in which position to set both commutator switches to automatically obtain the best welding result. Technologically advanced, robust and easy-to-use MAXI 4005 and 5005 with ES 5 provide the additional synergic feature on top of the already excellent characteristics of the MAXI power sources. |
||||
Technical data |
|
MAXI 4005 |
MAXI 5005 |
|
Three phase input 50/60Hz |
V |
230/400 |
230/400 |
|
Input Power @ I2 Max |
kVA |
19 |
24,2 |
|
Delayed Fuse (I2 @ 60%) |
A |
35/20 |
40/25 |
|
Power Factor |
|
0,96 |
0,97 |
|
cos f |
|
0,96 |
0,97 |
|
Efficiency Degree |
|
0,75 |
0,71 |
|
Open Circuit Voltage |
V |
20-44 |
19-51 |
|
Adjustament positions |
No. |
20 |
30 |
|
Current range |
A |
60-400 |
60-500 |
|
Duty Cycle at |
100% |
A |
230 |
300 |
Wires |
Ψ mm |
0,6-1,6 |
0,8-2,0 |
|
Standards |
|
LVD 2006/95/EC |
||
Protection Class |
IP |
23S |
23S |
|
Insulation Class |
|
H |
H |
|
Dimensions |
mm |
d |
1060 |
1060 |
Weight |
Kg |
102 |
116 |
MIG-MAG SEPARATE WIRE FEEDER - ELECTRONIC ADJUSTMENT | ||||||
ECHO 4000 CV ECHO 5000 CV ECHO 6000 CV product data Three phase MIG-MAG semi-automatic equipment suitable for any industrial application, such as medium and largefabrication work, shipyard and steel construction. ECHO series, thanks to its modularity, grants the maximum versatility in any welding application. ECHO 4000 CV - 5000 CV and 6000 CV power sources, usable with a wide selection of wire feeders and different length interconnecting cables, allow the remote control facility of all welding parameters directly from the feeder. The multiprocess ECHO 7000 CC CV is able to perform multiple processes, i.e. MIG, MMA, TIG and GOUGING with carbon electrodes. ECHO 4000 CV - 5000 CV and 6000 CV, when equipped with digital ES5 feeder, thanks to preset welding programs, really become an intelligent and user friendly synergic equipment enabling, even non expert operators, to easily adjust welding parameters in any circumstance according to material, gas and wire diameter being used. |
||||||
Technical data |
ECHO |
ECHO |
ECHO |
ECHO |
||
Three phase input 50/60Hz |
V |
230/400 |
230/400 |
230/400 |
230/400 |
|
Input Power @ I2 Max |
kVA |
20,1 |
29,2 |
40 |
46 |
|
Delayed Fuse (I2 @ 60%) |
A |
45/25 |
63/35 |
80/45 |
85/50 |
|
Power Factor |
|
0,92 |
0,91 |
0,90 |
0,88 |
|
cos f |
|
0,95 |
0,94 |
0,92 |
0,90 |
|
Efficiency Degree |
|
0,76 |
0,75 |
0,73 |
0,76 |
|
Open Circuit Voltage |
A |
16,5-44 |
17-51 |
17,5-58 |
22-56 |
|
Current Range |
A |
25-400 |
25-500 |
30-600 |
25-700 |
|
Duty Cycle at (40°C) |
100% |
A |
230 |
310 |
390 |
460 |
Wires |
Ψ mm |
0,6-1,6 |
0,6-1,6 |
0,8-2,0 |
0,8-2,4 |
|
Standards |
|
LVD 2006/95/EC |
||||
Protection Class |
|
23S |
23S |
23S |
23S |
|
Insulation Class |
|
H |
H |
H |
H |
|
Dimensions |
mm |
p |
1060 |
1060 |
1060 |
1060 |
Weight |
Kg |
104 |
116 |
146 |
180 |
|
Synergic Adjustment |
ES 5 |
|
||||
Arc welding with stick electrode |
|
|
|
|||
Lift Mode Arc Striking |
|
|
|

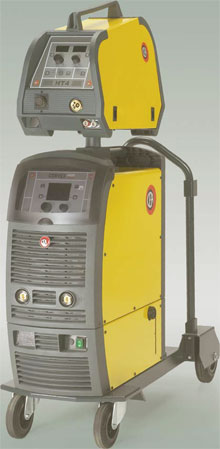

CONVEX 400 Basic CONVEX 500 Basic CONVEX 4000 Vision CONVEX 5000 Vision product data MULTIFUNCTION INVERTER POWER SOURCES FOR MIG-MAG, MMA AND TIG WELDING Attractive, highly modern design chassis Innovative, technologically ahead, robust and easy-to-use, they offer premium quality welding in MIG-MAG, MMA and TIG by lift mode and represent the best solution for the most qualified welding applications in any CONVEX Vision series power sources, equipped with an innovative colour display digital synergic control, fully meet the needs of combining synergy with the total control of all the welding parameters. The easier-to-use CONVEX Basics are ideal for anybody looking for an innovative , modern and, at the same time, user friendly equipment, more similar in the adjustments of the parameters to a traditional power source. |
||||||
Technical data |
|
CONVEX 250 BASIC |
CONVEX 320 BASIC |
CONVEX 400 BASIC |
CONVEX 500 BASIC |
|
Three phase input 50/60Hz |
V |
400 |
400 |
400 |
400 |
|
Input Power @ I2 Max |
kVA |
9,8 |
14,3 |
18,6 |
24,4 |
|
Delayed Fuse (I2 @ 60%) |
A |
16 |
20 |
25 |
35 |
|
Power Factor |
- |
0,86 |
0,86 |
0,90 |
0,94 |
|
cos f |
- |
0,99 |
0,99 |
0,99 |
0,99 |
|
Efficiency Degree |
- |
0,85 |
0,85 |
0,88 |
0,89 |
|
Open Circuit Voltage |
V |
63 |
63 |
70 |
70 |
|
Current Range |
A |
10-250 |
10-320 |
10-400 |
10-500 |
|
Duty Cycle at (40°C) |
100% |
A |
170 |
240 |
310 |
380 |
Wire |
Ψ mm |
0,6 - 1,2 |
0,6 - 1,2 |
0,6 - 1,6 |
0,6 - 2,0 |
|
Standards |
|
LVD
2006/95/EC |
||||
Protection Class |
IP |
23S |
23S |
23S |
23S |
|
Insulation Class |
- |
H |
H |
H |
H |
|
Dimensions |
mm |
L |
660 |
660 |
660 |
660 |
Weight |
Kg |
29 |
35 |
45 |
52 |

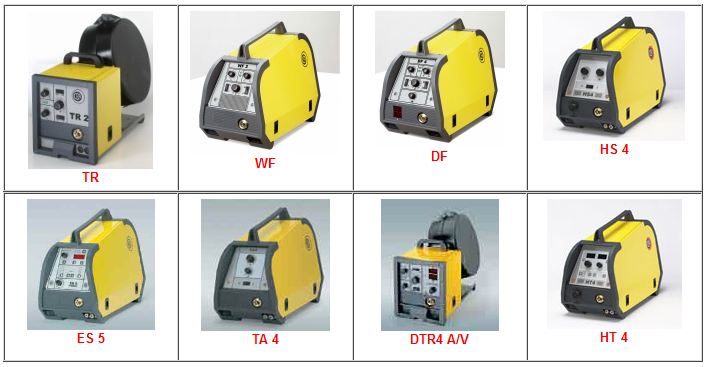

wire feeders | ||||||||
Technical Data | TR 1 | TR 2 | TR 4 | WF 2 | WF 4 | DTR4 A/V | ||
Single phase input 50/60Hz | V | 48 | 48 | 48 | 48 | 48 | 48 | |
Motor power | W | 50 | 100 | 100 | 100 | 100 | 100 | |
Rolls | No. | 2 | 2 | 4 | 2 | 4 | 4 | |
Feeding speed | m/min | 0.5-24 | 0.5-24 | 0.5-24 | 0.5-24 | 0.5-20 | 0.5-24 | |
Solid wire (steel) | Ψ mm | 0.6 - 1.6 | 0.6 - 2.4 | 0.6 - 2.4 | 0.6 - 2.4 | 0.6 - 2.4 | 0.6 - 2.4 | |
Loading capacity | A | 60 % 100 % |
600 460 |
600 460 |
600 460 |
600 460 |
600 460 |
600 460 |
Dimensions | mm | d w h |
450 230 315 |
450 230 315 |
450 230 315 |
570 275 400 |
570 275 400 |
450 230 315 |
Weight | Kg | 10.5 | 11.5 | 11.5 | 16 | 17 | 11.5 |
Technical Data | DF 4 | ES 5 | TA 4 | HS 4 | HT 4 | ||
Single phase input 50/60Hz | V | 48 | 48 | 48 | 48 | 48 | |
Motor power | W | 100 | 100 | 100 | 100 | 100 | |
Rolls | No. | 4 | 4 | 4 | 4 | 4 | |
Feeding speed | m/min | 0.5-20 | 0.5-20 | 0.5-20 | 0.5-22 | 0.5-22 | |
Solid wire (steel) | Ψ mm | 0.6 - 2.4 | 0.6 - 2.4 | 0.8 - 2.4 | 0.6 - 2.4 | 0.6 - 2.4 | |
Loading capacity | A | 60 % 100 % |
600 460 |
600 460 |
600 460 |
600 460 |
600 460 |
Dimensions | mm | d w h |
570 275 400 |
570 275 400 |
570 275 400 |
650 290 520 |
650 290 520 |
Weight | Kg | 17 | 17 | 17 | 17 | 17 |
MULTIFUNCTION POWER SOURCES DUAL-PULSED MIG, PULSED MIG, MIG/MAG, MMA and TIG | |||
BUILT-IN WIRE FEEDER - ELECTRONIC ADJUSTMENT | |||
DIGISTAR 250
product data MULTIFUNCTION INVERTER POWER SOURCE FOR DUAL-PULSED MIG, PULSED MIG, MIG/MAG, MMA AND TIG. The synergic multifunction DIGISTAR 250 power source, based on the most modern IGBT inverter technology and fully digital controlled, allowing premium welding quality in both MIG/MAG and Pulsed / Dual-Pulsed MIG on all materials and particularly on stainless steel, aluminium and galvanized steel, by minimizing any reworking job thanks to their spatter free welding. Innovative, robust and easy-to-use, DIGISTAR 250 represents the ideal solution for any application requiring high precision and repeatability of the achieved results, by making this power source perfectly suitable for the most qualified industrial and professional jobs, particularly in qualified maintenance and automotive sector. Its lightweight and reduced size provide the portability and its very high technological content makes it star performer even in toughest working conditions. DIGISTARS 250 versatility allows the operator achieve optimal results both in TIG by lift mode striking and in MMA welding. |
|||
Technical data |
DIGISTAR 250 |
||
Three phase input 50/60Hz |
V |
400 | |
Input Power @ I2 Max |
kVA |
12,6 | |
Delayed Fuse (I2 @ 60%) |
A |
16 | |
Power Factor |
|
0,65 | |
cos f |
|
0,99 | |
Efficiency Degree |
|
0,81 | |
Open Circuit Voltage |
A |
63 | |
Current Range |
A |
10-250 | |
Duty Cycle at (40°C) | 100% 60% 40% |
A |
160 200 250 |
Wires |
Ψ mm |
0,6-1,2 | |
Standards | LVD
2006/95/EC EMC 2004/108/EC EN 60974-1 EN 60974-5 EN 60974-10 EMC (CISPR11): Class A CE |
||
Protection Class | 23S | ||
Insulation Class | H | ||
Dimensions |
mm |
L |
615 290 525 |
Weight |
Kg |
29 |
SEPARATE WIRE FEEDER - ELECTRONIC ADJUSTMENT | ||||||
DIGITECH 300 Compact DIGITECH 320 DIGITECH 400 DIGITECH 500 product data The synergic multifunction DIGITECH power sources, based on the most modern IGBT inverter technology and fully digital controlled, allow premium welding quality in both MIG-MAG and in Pulsed and Dual-Pulsed MIG on all materials and particularly on stainless steel, aluminium and galvanized steel, by minimizing any reworking job thanks to their spatter free welding. Technologically advanced, easy-to-use, DIGITECH's represent the ideal solution for any application requiring high precision and repeatability of the achieved results. The DIGITECH's versatility allows the operator achieve optimal performances both in TIG by "lift" mode striking and in MMA welding. DIGITECH 320, 400 and 500 models are supplied with separate wire feeder, whilst DIGITECH 300 Compact is designed with built-in wire feeder. |
||||||
Technical data | DIGITECH 300 COMPACT | DIGITECH 320 | DIGITECH 400 | DIGITECH 500 | ||
Three phase input 50/60Hz |
V |
400 | 400 | 400 | 400 | |
Input Power @ I2 Max |
kVA |
16 | 17,3 | 21,3 | 33 | |
Delayed Fuse (I2 @ 60%) |
A |
16 | 16 | 20 | 40 | |
Power Factor |
|
0,71 | 0,71 | 0,72 | 0,71 | |
cos f |
|
0,99 | 0,99 | 0,99 | 0,99 | |
Efficiency Degree |
|
0,76 | 0,76 | 0,79 | 0,83 | |
Open Circuit Voltage |
A |
70 | 70 | 63 | 70 | |
Current Range |
A |
10-300 | 10-320 | 10-400 | 10-500 | |
Duty Cycle at (40°C) | 100% 60% 50% 40% |
A |
180 230 300 - |
200 260 - 320 |
270 350 400 - |
400 500 - - |
Wires |
Ψ mm |
0,8-1,2 | 0,8-1,2 | 0,6-1,6 | 0,8-1,6 | |
Standards | LVD
2006/95/EC EMC 2004/108/EC EN 60974-1 EN 60974-5 EN 60974-10 EMC (CISPR11): Class A CE |
LVD 2006/95/EC EMC 2004/108/EC EN 60974-1 EN 60974-10 EMC (CISPR11): Class A CE |
||||
Protection Class | 23S | 23S | 23S | 23S | ||
Insulation Class | H | H | H | H | ||
Dimensions |
mm |
L |
665 290 525 |
665 290 525 |
665 290 525 |
715 290 525 |
Weight |
Kg |

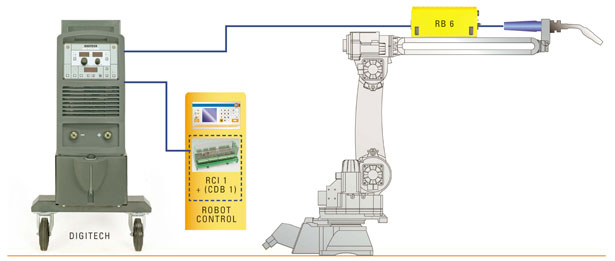

39 | 37 | 49 | 56 |
ROBOTICS & AUTOMATION - MIG | ||||
product data The synergic multifunction DIGITECH Rs power sources, based on the most modern IGBT inverter technology and digital controlled, allow premium quality in MIG/MAG, Pulsed and Dual-Pulsed on all materials and particurarly on stainless steel, aluminium and galvanized steel, thanks to their spatter free welding. DIGITECH Rs have been appositely designed for automation and robotic applications and represent the ideal solution for any application requiring high precision and repeatability of the achieved results for the most qualified industrial needs. |
||||
Technical data | DIGITECH 400 R | DIGITECH 500 R | ||
Three phase input 50/60Hz |
V |
400 | 400 | |
Input Power @ I2 Max |
kVA |
21,3 | 33 | |
Delayed Fuse (I2 @ 60%) |
A |
20 | 40 | |
Power Factor |
|
0,72 | 0,71 | |
cos f |
|
0,99 | 0,99 | |
Efficiency Degree |
|
0,79 | 0,83 | |
Open Circuit Voltage |
A |
63 | 70 | |
Current Range |
A |
10-400 | 10-500 | |
Duty Cycle at (40°C) | 100% 60% 50% 40% |
A |
270 350 400 - |
400 500 - - |
Wires |
Ψ mm |
0,6-1,6 | 0,8-1,6 | |
Standards | LVD 2006/95/EC EMC 2004/108/EC EN 60974-1 EN 60974-10 EMC (CISPR11): Class A CE |
|||
Protection Class | 23S | 23S | ||
Insulation Class | H | H | ||
Dimensions |
mm |
p |
665 290 525 |
715 290 525 |
Weight |
Kg |
49 | 56 |
TIG | ||||||
TIG D.C. | ||||||
RAINBOW
170 HF and
digital control RAINBOW 200 HF represents the latest evolution of
inverter DC welding machines.
product data These powerful 100 KHz power sources, based on the very latest IGBT technology and fitted with flat transformer, can be used for TIG welding of any metal, excluding aluminium and its alloys. RAINBOW 170 and 200 HF, which also perform very well in MMA welding , thanks to their light and compact size and excellent welding characteristics, are the ideal solution for maintenance, assembly and light fabrication works. Innovative and compact design Shock-proof fibre compound main structure Control panel protected against accidental impact Robust handle built-in into the chassis Reduced weight and dimensions, easy-to-carry Precise and efficient TIG arc striking by high frequency High performance on thin metal sheets Standard equipped with pulse mode integrated into the control with available "EASY PULSE" facility (RAINBOW 200 HF) Digital control of all the welding parameters with the ability to store 9 personalised programs (RAINBOW 200 HF) Automatic compensation for mains voltage fluctuations within + 15% - 20% Low energy consumption and high efficiency |
||||||
Technical Data | RAINBOW 170 HF | RAINBOW 200 HF | ||||
TIG | MMA | TIG | MMA | |||
Single phase input 50/60 Hz | V | 230 | 230 | |||
Input Power @ I2 Max | kVA | 7,2 | 7,9 | 8,5 | 9,0 | |
Delayed Fuse (@ 100%) | A | 16 | 16 | 20 | 20 | |
Power Factor | 0,61 | 0,61 | 0,60 | 0,60 | ||
cos f | 0,99 | 0,99 | 0,99 | 0,99 | ||
Efficiency Degree | 0,65 | 0,65 | 0,71 | 0,71 | ||
Current Range | A | 5-170 | 5-150 | 5-200 | 5-160 | |
Open Circuit Voltage | V | 88 | 88 | 88 | 88 | |
Duty Cycle at (40°C) | 100% 60% X% |
A |
95 115 170 (20%) |
95 115 150 (25%) |
110 130 200 (20%) |
105 125 160 (30%) |
Standards |
LVD 2006/95/EC |
|||||
Protection Class | IP | 23S | 23S | |||
Insulation Class | H | H | ||||
Dimensions | mm | L W H |
390 135 300 |
390 135 300 |
||
Weight | kg | 7 | 7.5 |
MATRIX 2200 HF
TIG INVERTER WELDING EQUIPMENT product data Powerful, compact and lightweight MATRIX 2200 HF is the most innovative, high-performing and technologically ahead single phase power source ever developed for TIG welding. Its PFC Power Factor Correction device optimises the amount of energy consumption by allowing the use of this powerful power source, without problems, with 16A fuse mains and with power generator sets. The user-friendly and advanced function digital control ensures an extraordinary perfect stability of the welding parameters thus granting very high quality welding both in TIG and MMA with any electrodes. MATRIX 2200 HF is the ideal choice for all qualified welding applications and maintenance jobs, whenever power and portability are needed. MATRIX 2200 HF allows TIG DC welding of mild and stainless steel, copper and its alloys. MATRIX 250 HF MATRIX 400 HF product data Based on the very latest IGBT inverter technology, TIG power sources with high frequency arc striking of the MATRIX series are equipped with an innovative digital panel for the complete control of all the welding parameters. The excellent technical characteristics of these welding machines, coupled with the feature of digital control, allow high quality TIG welding, suitable for the toughest industrial applications and maintenance. These highly advanced technology power sources are robust and user friendly: MATRIX HFs, DC output only, enable TIG welding of mild and stainless steel, copper and its alloy. MATRIX series power sources also offer excellent performance also in MMA welding with the most difficult basic and cellulosic electrodes. |
||||||||
Technical Data | MATRIX 2200 HF | MATRIX 250 HF | MATRIX 400 HF | |||||
MMA | TIG | MMA | TIG | MMA | TIG | |||
Single phase input 50/60 Hz | V | 230 | - | - | ||||
Three phase input 50/60 Hz | V | - | 400 | 400 | ||||
Input Power @ I2 Max | kVA | 5,9 | 4,9 | 9,8 | 6,8 | 19,9 | 15,0 | |
Delayed Fuse (@ 100%) | A | 16 | 16 | 10 | 10 | 16 | 16 | |
Power Factor | 0,99 | 0,99 | 0,97 | 0,98 | 0,97 | 0,97 | ||
cos f | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | ||
Efficiency Degree | 0,80 | 0,77 | 0,79 | 0,75 | 0,75 | 0,71 | ||
Current Range | A | 5-180 | 5-220 | 5-250 | 3-250 | 5-400 | 3-400 | |
Open Circuit Voltage | V | 100 | 10 | 95 | 95 | 65 | 65 | |
Duty Cycle at (40°C) | 100% 60% X% |
A |
120 150 180 (30%) |
160 190 220 (30%) |
160 200 250 (35%) |
170 200 220 (35%) |
250 320 400 (35%) |
250 320 400 (35%) |
Standards |
LVD 2006/95/EC |
|||||||
Protection Class | IP | 23S | 23S | 23S | ||||
Insulation Class | H | H | H | |||||
Dimensions | mm | L W H |
465 185 390 |
500 220 425 |
560 220 425 |
|||
Weight | kg | 13 | 22 | 32 | ||||
PFC | - | - | ||||||
VRD | - | - |
TIG DC and AC | ||||||||||
MATRIX
2200 AC/DC TIG INVERTER WELDING EQUIPMENT product data Powerful, compact and lightweight MATRIX 2200 AC/DC is the most innovative, high-performing and technologically ahead single phase power source ever developed for TIG welding. Its PFC Power Factor Correction device optimises the amount of energy consumption by allowing the use of this powerful power source, without problems, with 16A fuse mains and with power generator sets. The user-friendly and advanced function digital control ensures an extraordinary perfect stability of the welding parameters thus granting very high quality welding both in TIG and MMA with any electrodes. MATRIX 2200 AC/DC is the ideal choice for all qualified welding applications and maintenance jobs, whenever power and portability are needed. MATRIX 2200 AC/DC allows TIG DC welding of mild and stainless steel, copper and its alloys, and TIG AC welding of aluminium and its alloys included. |
||||||||||
Technical Data | MATRIX 2200 AC/DC | MATRIX 250 AC/DC | MATRIX 400 AC/DC | MATRIX 500 AC/DC | ||||||
TIG | MMA | TIG | MMA | TIG | MMA | TIG | MMA | |||
single phase input 50/60 Hz | V | 230 | - | - | - | |||||
Three phase input 50/60 Hz | V | - | 400 | 400 | 400 | |||||
Input Power @ I2 Max | kVA | 6,3 | 5,4 | 7 | 10,2 | 15,3 | 20,5 | 17,9 | 24 | |
Delayed Fuse (@ 100%) | A | 16 | 10 | 16 | 20 | |||||
Power Factor | 0,99 | 0,99 | 0,98 | 0,97 | 0,97 | 0,97 | 0,95 | 0,95 | ||
cos f | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | ||
Efficiency Degree | 0,77 | 0,77 | 0,74 | 0,75 | 0,70 | 0,72 | 0,88 | 0,88 | ||
Current Range | A | 5-220 | 5-180 | 5-250 | 5-400 | 10-500 | ||||
Open Circuit Voltage | V | 100 | 10 | 95 | 65 | 70 | ||||
Duty Cycle at (40°C) | 100% 60% X% |
A |
140 180 220 (30%) |
120 150 180 (30%) |
170 200 250 (35%) |
160 200 250 (35%) |
250 320 400 (35%) |
250 320 400 (35%) |
310 400 500 (35%) |
310 400 500 (35%) |
Standards |
LVD 2006/95/EC |
|||||||||
Protection Class | IP | 23S | 23S | 23S | 23S | |||||
Insulation Class | F | H | F | F | ||||||
Dimensions | mm | L W H |
465 185 390 |
560 220 425 |
670 290 525 |
715 290 525 |
||||
Weight | Kg | 15,5 | 28 | 49 | 53 | |||||
PFC | - | - | - | |||||||
VRD | - | - | - |
MATRIX 250 AC/DC
MATRIX 400 AC/DC MATRIX 500 AC/DC product data Based on the very latest IGBT inverter technology, TIG power sources with high frequency arc striking of the MATRIX series are equipped with an innovative digital panel for the complete control of all the welding parameters. The excellent technical characteristics of these welding machines, coupled with the feature of digital control, allow high quality TIG welding, suitable for the toughest industrial applications and maintenance. These highly advanced technology power sources are robust and user friendly: MATRIX AC/DCs can also be used for TIG welding of all metals, including aluminium and its alloys. MATRIX series power sources also offer excellent performance also in MMA welding with the most difficult basic and cellulosic electrodes. |
||||||||||
Technical Data | MATRIX 2200 AC/DC | MATRIX 250 AC/DC | MATRIX 400 AC/DC | MATRIX 500 AC/DC | ||||||
TIG | MMA | TIG | MMA | TIG | MMA | TIG | MMA | |||
single phase input 50/60 Hz | V | 230 | - | - | - | |||||
Three phase input 50/60 Hz | V | - | 400 | 400 | 400 | |||||
Input Power @ I2 Max | kVA | 6,3 | 5,4 | 7 | 10,2 | 15,3 | 20,5 | 17,9 | 24 | |
Delayed Fuse (@ 100%) | A | 16 | 10 | 16 | 20 | |||||
Power Factor | 0,99 | 0,99 | 0,98 | 0,97 | 0,97 | 0,97 | 0,95 | 0,95 | ||
cos f | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | ||
Efficiency Degree | 0,77 | 0,77 | 0,74 | 0,75 | 0,70 | 0,72 | 0,88 | 0,88 | ||
Current Range | A | 5-220 | 5-180 | 5-250 | 5-400 | 10-500 | ||||
Open Circuit Voltage | V | 100 | 10 | 95 | 65 | 70 | ||||
Duty Cycle at (40°C) | 100% 60% X% |
A |
140 180 220 (30%) |
120 150 180 (30%) |
170 200 250 (35%) |
160 200 250 (35%) |
250 320 400 (35%) |
250 320 400 (35%) |
310 400 500 (35%) |
310 400 500 (35%) |
Standards |
LVD 2006/95/EC |
|||||||||
Protection Class | IP | 23S | 23S | 23S | 23S | |||||
Insulation Class | F | H | F | F | ||||||
Dimensions | mm | L W H |
465 185 390 |
560 220 425 |
670 290 525 |
715 290 525 |
||||
Weight | Kg | 15,5 | 28 | 49 | 53 | |||||
PFC | - | - | - | |||||||
VRD | - | - |
A.C. AND D.C. | ||||||
AC/DC 260 product data TIG welding equipment, single phase supply, most suitable for production and maintenance weldings. It is mounted on a strong undergear with bottle-carriage for easy transport. On request it can be supplied with water cooling equipment for the torch cooling. Electrode and TIG welding of any type of material Very good arc stability Very good welding with stick electrode |
||||||
Technical Data | AC/DC 260 | |||||
MMA AC | MMA DC | TIG AC | TIG DC | |||
Single phase input | V50Hz | 230/400 | ||||
Input Power @ I2 Max | kVA | 31,9 | ||||
Delayed Fuse (@ 100%) | A | 63/40 | ||||
Power Factor | 0,41 | |||||
cos f | ||||||
Efficiency Degree | A | 0,65 | ||||
Open Circuit Voltage | V | 78 | 76 | 78 | 76 | |
Current Range | A | 20χ250 | 15χ200 | 25χ260 | 20χ220 | |
Duty Cycle |
100% |
A |
150 190 250 |
120 150 200 |
115 150 195 |
130 170 220 |
Standardfs | ILVD 2006/95/EC EMC 2004/108/EC EN 60974 - 1 EN 60974 - 3 EN 60974 - 10 EMC (CISPR11): Class A CE |
|||||
Protection Class | IP | 23 | ||||
Insulation Class | H | |||||
Dimensions |
mm |
p |
970 405 760 |
|||
Weight |
Kg |
119 |

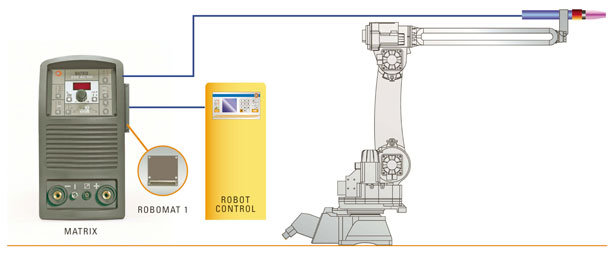

ROBOTICS & AUTOMATION - TIG | ||||||
MATRIX
HF-Rs
MATRIX AC/DC-Rs product data Based on the very latest IGBT inverter technology, these DC and AC/DC power sources, thanks to their excellent arc characteristics, allow high quality TIG welding of all metals, aluminium and its alloys included, if using AC/DC models. MATRIX Rs have been appositely designed for automation and robotic applications and represent the ideal solution for any application requiring high precision and repeatability of the achieved results for the most qualified industrial needs. |
||||||
Technical Data | MATRIX 250 HF - R | MATRIX 400 HF - R | MATRIX 250 AC/DC - R | MATRIX 400 AC/DC - R | ||
Three phase input 50/60 Hz | V | 400 | 400 | 400 | 400 | |
Input Power @ I2 Max | kVA | 6,8 | 15 | 7 | 15,3 | |
Delayed Fuse (@ 100%) | A | 10 | 16 | 10 | 16 | |
Power Factor | 0,98 | 0,97 | 0,98 | 0,97 | ||
cos f | 0,99 | 0,99 | 0,99 | 0,99 | ||
Efficiency Degree | 0,75 | 0,71 | 0,74 | 0,70 | ||
Current Range | A | 5-250 | 5-400 | 5-250 | 5-400 | |
Open Circuit Voltage | V | 95 | 65 | 95 | 65 | |
Duty Cycle at (40°C) | 100% 60% 35% |
A |
170 200 220 |
250 320 400 |
170 200 220 |
250 320 400 |
Standards | LVD
2006/95/EC EMC 2004/108/EC EN 60974 - 1 EN 60974 - 3 EN 60974 - 10 EMC (CISPR11): Class A CE |
|||||
Protection Class | IP | 22 | 32 | 23 | 23 | |
Insulation Class | H | F | H | F | ||
Dimensions | mm | L W H |
500 220 425 |
560 220 425 |
560 220 425 |
560 220 425 |
Weight | kg | 22 | 32 | 32 | 32 |
MMA | ||||||||||
D.C. - ELECTRONIC ADJUSTMENT | ||||||||||
PROJECT 1300 - 1600
PROJECT 1650 INVERTER POWER SOURCE FOR ELECTRODE WELDING product data PROJECT's are powerful DC latest generation 100 KHz inverter power sources, built in an innovative, ergonomic and robust chassis standard equipped with a carrying belt for easy transportation. Theirs very compact structure, lightness and user friendly feature make them ideal for any professional use with any type of basic and rutile electrodes for maintenance and light fabrication works. Theirs excellent welding characteristics in MMA and TIG welding with lift mode arc striking, coupled with its IP 23 protection class, enable its use in any work environment. PROJECT 1650 is standard fitted with PFC |
||||||||||
Technical data |
PRO JECT 1300 |
PRO JECT 1600 |
PRO JECT 1650 |
RAIN BOW 1150 |
RAIN BOW 150 |
RAIN BOW 153 cell |
RAIN BOW 180 |
RAIN BOW 183 cell VRD |
||
Single
phase input 50/60 Hz |
V | 230 | 230 | 230 | 115 | 230 | 230 | 230 | 230 | |
Input Power @ I2 Max | kVA | 7,3 | 9,8 | 5,5 | 5,8 | 7,6 | 7,9 | 11,3 | 11,3 | |
Delayed Fuse (@ I2 100%) | A | 16 | 16 | 16 | 32 | 16 | 16 | 20 | 20 | |
Power Factor | 0,62 | 0,60 | 0,99 | 0,70 | 0,66 | 0,66 | 0,59 | 0,55 | ||
cos f | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | ||
Efficiency Degree | 0,82 | 0,82 | 0,85 | 0,74 | 0,79 | 0,75 | 0,74 | 0,74 | ||
Open circuit voltage | V | 60 | 60 | 60 | 88 | 88 | 103 | 88 | 12 | |
Current range | A | 5χ130 | 5χ160 | 5χ160 | 5χ120 | 5χ150 | 5χ150 | 5χ180 | 5χ180 | |
Duty Cycle at (40°C) | 100% 60% X% |
A |
80 100 130 (25%) |
90 105 160(25%) |
100 115 160(30%) |
80 90 120(25%) |
100 120 150(30%) |
90 110 150(20%) |
110 130 180(20%) |
100 120 170(20%) |
Standards |
LVD 2006/95/EC |
|||||||||
Protection Class | IP | 23S | 23S | 23S | 21S | 21S | 21S | 23S | 23S | |
Dimensions | mm | p l h |
315 135 230 |
315 135 230 |
400 135 230 |
340 115 260 |
340 115 260 |
340 115 260 |
390 135 300 |
390 135 300 |
Weight | kg | 6,1 | 6.3 | 8,9 | 4,2 | 4,2 | 4,2 | 6 | 6,5 | |
Lift Mode Arc Striking | ||||||||||
VRD | - | - | - | - | - | - | - | |||
PFC | - | - | - | - | - | - | - |
RAINBOW 1150 - 150
153 cell - 180 183 cell VRD RAINBOWS represent the latest evolution in inverter technology DC welding equipment. These powerful 100 kHz power sources are based on latest generation IGBTs and fitted with a flat transformer. RAINBOWS, with their lightness, reduced size and their excellent characteristics in electrode (MMA) and TIG welding with "lift" mode arc striking, are the most suitable solution for maintenance and light fabrication works. RAINBOW 153 cell and 183 cell VRD are special versions for cellulosic electrodes. |
||||||||||
Technical data | PROJECT 1300 | PROJECT 1600 | PROJECT 1650 |
RAINBOW 1150 | RAINBOW 150 | RAINBOW 153 cell | RAINBOW 180 | RAINBOW 183 cell VRD | ||
Single
phase input 50/60 Hz |
V | 230 | 230 | 230 | 115 | 230 | 230 | 230 | 230 | |
Input
Power @ I2 Max |
kVA | 7,3 | 9,8 | 5,5 | 5,8 | 7,6 | 7,9 | 11,3 | 11,3 | |
Delayed
Fuse (@ I2 100%) |
A | 16 | 16 | 16 | 32 | 16 | 16 | 20 | 20 | |
Power Factor | 0,62 | 0,60 | 0,99 | 0,70 | 0,66 | 0,66 | 0,59 | 0,55 | ||
cos f | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | ||
Efficiency Degree | 0,82 | 0,82 | 0,85 | 0,74 | 0,79 | 0,75 | 0,74 | 0,74 | ||
Open circuit voltage |
V | 60 | 60 | 60 | 88 | 88 | 103 | 88 | 12 | |
Current range |
A | 5χ130 | 5χ160 | 5χ160 | 5χ120 | 5χ150 | 5χ150 | 5χ180 | 5χ180 | |
Duty Cycle at (40°C) |
100% 60% X% |
A |
80 100 130 (25%) |
90 105 160(25%) |
100 115 160(30%) |
80 90 120(25%) |
100 120 150(30%) |
90 110 150(20%) |
110 130 180(20%) |
100 120 170(20%) |
Standards |
LVD 2006/95/EC |
|||||||||
Protection Class | IP | 23S | 23S | 23S | 21S | 21S | 21S | 23S | 23S | |
Dimensions | mm | p l h |
315 135 230 |
315 135 230 |
400 135 230 |
340 115 260 |
340 115 260 |
340 115 260 |
390 135 300 |
390 135 300 |
Weight | kg | 6,1 | 6.3 | 8,9 | 4,2 | 4,2 | 4,2 | 6 | 6,5 | |
Lift
Mode Arc Striking |
||||||||||
VRD | - | - | - | - | - | - | - | |||
PFC | - | - | - | - | - | - | - |
MATRIX 2200 E
SINGLE PHASE INVERTER POWER SOURCE FOR ELECTRODE WELDING product data Powerful, compact and lightweight MATRIX 2200 E is the most innovative, high-performing and technologically ahead single phase power source ever developed for electrode welding. Its PFC Power Factor Correction device optimises the amount of energy consumption by allowing its use with 16A fuse mains, thus becoming the ideal choice for all qualified welding applications and maintenance jobs, whenever power and portability are needed. Designed according to the very latest IGBT based inverter technology, thanks to its digital welding control, MATRIX 2200 E ensures an extraordinary perfect stability of the welding parameters to obtain high quality joints with all types of electrodes, cellulosic included, and in TIG with lift mode arc striking. |
||||
Technical data | MATRIX 2200 E | |||
MMA | TIG | |||
Single phase input 50/60 Hz | V | 230 | 230 | |
Three phase input 50/60 Hz | V | - | - | |
Input Power @ I2 Max | kVA | 6,2 | 5,8 | |
Delayed Fuse A (@ 100%) | A | 16 | 16 | |
Power factor max | 0,99 | 0,99 | ||
cos f | 0,99 | 0,99 | ||
Efficency max | 0,80 | 0,80 | ||
Current range | A | 5-180 | 5-220 | |
Open circuit voltage | V | 100 | 10 | |
Welding currentat (40°C) | 100% 60% 40% |
A |
120 150 180 |
140 180 220 |
Electrode | mm | 1,6 - 4 | ||
Tungsten electrode | mm | 1,0 - 3,2 | ||
Standards |
LVD 2006/95/EC |
|||
Protection Class | IP | 23S | ||
Insulation Class | H | |||
Dimensions | mm | L W H |
430 185 390 |
|
Weight | Kg | 12 |
MATRIX
2700 E
MATRIX 2700 E SV MATRIX 420 E THREE PHASE INVERTER POWER SOURCES FOR ELECTRODE WELDING product data Powerful, compact and lightweight MATRIX 2700 E and 420 E thanks to their innovative digital control of the welding process are the most high performing and technologically advanced products ever manufactured. Built according to the very latest IGBT based inverter technology, these DC power sources thanks to their excellent arc characteristics, are recommended for highest standard applications with any electrode. Suitable to be used in shipyards, steel construction, pipe welding and maintenance, MATRIX Es ensure an extraordinary stability of the welding parameters and their "fast dynamic characteristic" enables to achieve quality results even with the most difficult cellulosic and basic electrodes and also in TIG with "lift" mode arc striking. MATRIX 2700 E SV is standard supplied with 230 /400 V three phase input voltage. |
||||||||||
Technical data | MATRIX 2700 E | MATRIX 2700 E SV | MATRIX 420 E | |||||||
MMA | TIG | MMA | TIG | MMA | TIG | MMA | TIG | |||
Three phase input 50/60 Hz | V | 400 | 230 | 400 | 400 | |||||
Input power @ I2 Max | kVA | 10 | 7,3 | 8,4 | 5,4 | 10,7 | 7,3 | 17,4 | 13,9 | |
Delayed Fuse (I2 @ 100%) | A | 10 | 10 | 16 | 10 | 10 | 10 | 16 | 10 | |
Power Factor | 0,95 | 0,95 | 0,95 | 0,95 | 0,95 | 0,95 | 0,95 | 0,95 | ||
cos f | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | 0,99 | ||
Efficiency Degree | 0,88 | 0,88 | 0,8 | 0,8 | 0,82 | 0,82 | 0,88 | 0,88 | ||
Open Circuit Voltage | V | 100 | 10 | 100 | 10 | 100 | 10 | 100 | 10 | |
Current Range | A | 5-270 | 3-270 | 5-220 | 3-270 | 5-220 | 3-270 | 5-420 | 3-420 | |
Duty Cycle (40°C) | 100% 60% 40% |
A |
200 220 270 |
150 180 220 |
180 220 270 |
270 340 420 |
||||
Elettrodes | mm | 1,6 - 5 | 1,6 - 5 | 1,6 - 5 | 1,6 - 6,0 | |||||
Tungsten electrodes | mm | 1,0 - 4,0 | 1,0 - 4,0 | 1,0 - 4,0 | 1,0 - 6,0 | |||||
Standards |
LVD 2006/95/EC |
|||||||||
Protection Class | IP | 23S | ||||||||
Insulation Class | H | |||||||||
Dimensions | mm | L W H |
430 185 390 |
465 185 390 |
500 220 425 |
|||||
Weight | Kg | 14,5 | 16,5 | 20 | ||||||
VRD |
Arctronic 426 - 626 product data DC three-phase electrode welding equipment with electronic current adjstment. Sturdy, reliable, with excellent arc characteristics and recommended for highest standard applications with any electrode, they are suitable to be used in shipyards, steel construction and pipe welding. ARCTRONIC's ensure an extraordinary stability of the welding parameters and their "fast dynamic characteristic" allows to obtain high quality results also with the most difficult cellulosic and basic electrodes. |
||||
Technical data | ARCTRONIC 426 | ARCTRONIC 626 | ||
Three phase input 50/60 Hz | V | 230/400 | 230/400 | |
Input Power @ I2 Max | kVA | 32,5 | 47,4 | |
Delayed Fuse (@ 100%) | A | 50/32 | 80/45 | |
Poer Factor | 0,70 | 0,75 | ||
cos f | 0,80 | 0,80 | ||
Open circuit voltage | V | 64 | 64 | |
Current range | A | 5-400 | 5-600 | |
Duty cycle at (40°C) | 100% 60% 35% |
A |
220 290 400 |
330 430 600 |
Electrodes | mm | 1,6-8 | 1,6-8 | |
Standards |
LVD 2006/95/EC |
|||
Protection Class | IP | 23S | ||
Insulation Class | H | |||
Dimensions | mm | L W H |
1260 730 615 |
|
Weight | Kg | 147 | 196 |
D.C. - SHUNT ADJUSTMENT | ||||||
Arc 253 - 303 - 403 - 503 product data Range of threephase D.C. electrode welding machines, with current adjustment by magnetic shunt. Their sturdiness, reliability and excellent arc stability enable their use in heavy duty industrial applications. Three phase supply Continuous adjustment of welding current by means of magnetic shunt Excellent arc stability |
||||||
Technical data | ARC 253 | ARC 303 | ARC 403 | ARC 503 | ||
Three phase input 50/60 Hz | V | 230/400 | 230/400 | 230/400 | 230/400 | |
Input Power @ I2 Max | kVA | 16,8 | 20,5 | 26,8 | 32,5 | |
Delayed Fuse (I2 @ 100%) | A | 32/20 | 40/25 | 50/32 | 63/35 | |
Power Factor | 0,73 | 0,75 | 0,71 | 0,71 | ||
cos f | 0,73 | 0,75 | 0,71 | 0,71 | ||
Open Circuit Voltage | V | 65 | 65 | 71 | 75 | |
Current Range | A | 55-250 | 70-300 | 60-370 | 70-450 | |
Duty Cycle (40°C) | 100% 60% 35% |
A |
135 170 230 |
145 180 260 |
200 260 350 |
230 300 400 |
Elettrodes | mm | 2-5 | 2-5 | 2-6 | 2.5-8 | |
Standards |
LVD 2006/95/EC |
|||||
Protection Class | IP | 23 | ||||
Insulation Class | H | |||||
Dimensions | mm | L W H |
880 425 690 |
880 425 690 |
1120 570 725 |
1120 570 725 |
Weight | Kg | 53 | 64 | 95 | 117 |
Triarc 306/L - 406/L - 506/L product data Range of threephase D.C. electrode welding machines, with current adjustment by magnetic shunt. Their sturdiness, reliability and excellent arc stability enable their use in heavy duty industrial applications. TRIARC models, fitted with smoothing inductance, are also suitable for welding cellulosic electrodes. Three phase supply Continuous adjustment of welding current by means of magnetic shunt Excellent arc stability |
|||||
Technical data | TRIARC 306/L | TRIARC 406/L | TRIARC 506/L | ||
Three phase input 50/60 Hz | V | 230/400 | 230/400 | 230/400 | |
Input Power @ I2 Max | kVA | 19,7 | 29,8 | 38,2 | |
Delayed Fuse (I2 @ 100%) | A | 40/25 | 50/32 | 63/40 | |
Power Factor | 0,75 | 0,75 | 0,79 | ||
cos f | 0,75 | 0,75 | 0,79 | ||
Open Circuit Voltage | V | 65 | 75 | 75 | |
Current Range | A | 45-270 | 60-400 | 80-500 | |
Duty Cycle (40°C) | 100% 60% 35% |
A |
145 180 260 |
230 300 400 |
290 380 500 |
Elettrodes | mm | 1.6-5 | 2-8 | 2.5-8 | |
Standards |
LVD 2006/95/EC |
||||
Protection Class | IP | 23 | |||
Insulation Class | H | ||||
Dimensions | mm | L W H |
880 425 690 |
1120 570 725 |
1120 570 725 |
Weight | Kg | 82 | 122 | 139 |
A.C. - SHUNT ADJUSTMENT | |||||
Mega 161/A product data Single phase A.C. portable arc welder with current adjustment by magnetic shunt. MEGA 161/A is particularly suitable for do-it yourself requirements. Continuous welding current adjustment Thermostatic protection |
|||||
Technical data | MEGA 161/A | TURBO 270 | TM 401 | ||
Single phase input 50/60 Hz | V | 230/400 | 230/400 | 220/380 | |
Input Power @ I2 Max | kVA | 5 | 14 | 25.5 | |
Delayed Fuse (I2 @ 100%) | A | 16/10 | 25/16 | 80/50 | |
Power Factor | 0,55 | 0,62 | 0,62 | ||
cos f | 0,55 | 0,62 | 0,62 | ||
Open Circuit Voltage | V | 51 | 52 | 70 | |
Current Range | A | 60-140 | 40-195 | 60-350 | |
Duty Cycle (40°C) | 100% 60% X% |
A |
- - - |
100 125 195 (25%) |
200 250 350 (35%) |
Elettrodes | mm | 2-3,25 | 1,6-5 | 2-6 | |
Standards |
LVD 2006/95/EC |
||||
Protection Class | IP | 21 | 21 | 23 | |
Insulation Class | H | ||||
Dimensions | mm | L W H |
420 250 320 |
620 400 600 |
1000 560 730 |
Weight | Kg | 15.5 | 34 | 79 |
Turbo 270
product
dataTM 401 Single phase A.C. welding transformer with current adjustment by magnetic shunt, fan cooled. TURBO 270 is most suitable for welding repair works in workshops, factories and for agriculture. Fan assisted cooling Continuous adjustment of welding current |
|||||
Technical data | MEGA 161/A | TURBO 270 | TM 401 | ||
Single phase input 50/60 Hz | V | 230/400 | 230/400 | 220/380 | |
Input Power @ I2 Max | kVA | 5 | 14 | 25.5 | |
Delayed Fuse (I2 @ 100%) | A | 16/10 | 25/16 | 80/50 | |
Power Factor | 0,55 | 0,62 | 0,62 | ||
cos f | 0,55 | 0,62 | 0,62 | ||
Open Circuit Voltage | V | 51 | 52 | 70 | |
Current Range | A | 60-140 | 40-195 | 60-350 | |
Duty Cycle (40°C) | 100% 60% X% |
A |
- - - |
100 125 195 (25%) |
200 250 350 (35%) |
Elettrodes | mm | 2-3,25 | 1,6-5 | 2-6 | |
Standards |
LVD 2006/95/EC |
||||
Protection Class | IP | 21 | 21 | 23 | |
Insulation Class | H | ||||
Dimensions | mm | L W H |
420 250 320 |
620 400 600 |
1000 560 730 |
Weight | Kg | 15.5 | 34 | 79 |
PLASMA CUTTING EQUIPMENT | ||||||||
product data PLASMA CUT 26i compressor, a single phase IGBT based inverter power source with built-in professional compressor, ensures an extraordinary high quality cutting of any metal and perforated lamination sheet. Its lightness and incorporated compressor allow its portability and make it absolutely necessary for any maintenance work whenever lacking an air compressor source. Powerful, compact and light, PLASMA CUT 26i compressor is the ideal solution for installers, blacksmiths, car body repair, plumbing and building industry. |
||||||||
Technical data |
PLASMA |
PLASMA CUT 40i | PLASMA CUT 61i |
|||||
Single phase input 50/60 Hz | V | 230 | 230 | - | - | - | - | |
Three phase input 50/60 Hz | V | - | - | 400 | 230 | 400 | 400 | |
Input Power @ I2 max | kVA | 5,6 | 5,4 | 7,5 | 10,2 | 14,1 | 29 | |
Delayed Fuse (I2 @ 100 %) | A | 16 | 16 | 10 | 25 | 16 | 32 | |
Power Factor / cos f | 0,57/ 0,99 |
0,99 /0,99 |
0,94/ 0,99 |
0,95/ 0,99 |
0,95/ 0,99 |
0,95/ 0,99 |
||
Efficiency Degree | 0,78 | 0,83 | 0,89 | 0,90 | 0,91 | 0,82 | ||
Current Range | A | 10-25 | 20-40 | 20-60 | 20-80 | 20-100 | 20-150 | |
Duty Cycle at (40° C) | 100% 60% X% |
A |
15 20 25 (35%) |
20 30 40 (40%) |
40 50 60 (40%) |
50 60 80 (30%) |
70 85 100 (40%) |
100 120 150 (40%) |
Cutting capacity | mm | quality | 6 8 |
10 15 |
15 20 |
20 25 |
25 30 |
40 50 |
severange | ||||||||
Standards | EN 60974-1 EN 60974-7 IEC 60974-10 |
|||||||
Protection Class | IP | 23S | 23S | 23S | 23S | 23S | ||
Insulation class | H | H | H | H | H | |||
Insulation | mm | p l h |
540 220 425 |
490 185 390 |
540 220 425 |
600 220 425 |
670 290 520 |
|
Weight | Kg | 18,5 | 16 | 23 | 32 | 48 |
PLASMA CUT 40i - 61i - 100i - 150i product data These powerful power sources, built according to the very latest INVERTER technology, represent the most efficient solution for the manual cutting of any metal and perforated lamination sheet. The electronic control, coupled with inverter precision and flexibility, allows to determine the most correct parameters to obtain high quality cutting in function of material and thickness. Lightweight and handy single phase PLASMA CUT 40i with PFC is the ideal choice in car body repairs, agriculture and maintenance; whilst, the powerful three phase PLASMA CUT 61i, 100i and 150i are also suitable to be used in fabrication works and industry. PLASMA CUT 150i is standard equipped with display for digitally controlling all cutting parameters and automatic identification of the used torch; moreover it is ready to be utilized for robotized applications by means of ROBOMAT1 interface available as optional. INVERTER PLASMA CUTTING EQUIPMENT welding together. |
||||||||
Technical data |
PLASMA |
PLASMA CUT 40i | PLASMA CUT 61i |
|||||
Single phase input 50/60 Hz | V | 230 | 230 | - | - | - | - | |
Three phase input 50/60 Hz | V | - | - | 400 | 230 | 400 | 400 | |
Input Power @ I2 max | kVA | 5,6 | 5,4 | 7,5 | 10,2 | 14,1 | 29 | |
Delayed Fuse (I2 @ 100 %) | A | 16 | 16 | 10 | 25 | 16 | 32 | |
Power
Factor / cos f |
0,57/ 0,99 |
0,99/ 0,99 |
0,94/ 0,99 |
0,95/ 0,99 |
0,95/ 0,99 |
0,95/ 0,99 |
||
Efficiency Degree | 0,78 | 0,83 | 0,89 | 0,90 | 0,91 | 0,82 | ||
Current Range | A | 10-2 5 |
20-40 | 20- 60 |
20- 80 |
20-1 00 |
20-150 | |
Duty Cycle at (40° C) | 100% 60% X% |
A |
15 20 25 (35%) |
20 30 40 (40%) |
40 50 60 (40%) |
50 60 80 (30%) |
70 85 100 (40%) |
100 120 150 (40%) |
Cutting capacity | mm | quality | 6 8 |
10 15 |
15 20 |
20 25 |
25 30 |
40 50 |
severange | ||||||||
Standards | EN 60974-1 EN 60974-7 IEC 60974-10 |
|||||||
Protection Class | IP | 23S | 23S | 23S | 23S | 23S | ||
Insulation class | H | H | H | H | H | |||
Insulation | mm | p l h |
540 220 425 |
490 185 390 |
540 220 425 |
600 220 425 |
670 290 520 |
|
Weight | Kg | 18,5 | 16 | 23 | 32 | 48 |
Plasma

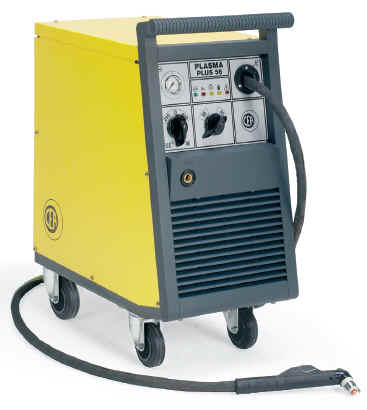

Plus 56 - 91 product data These three-phase equipment, with their new and user-friendly design, provide an economic, simple and efficient cutting system for any metal cutting application. Fitted with a dual current range, they are most suitable for car body repairs, small and medium fabrication work and industry. Innovative design with sloping shock-proof fibre compound front control panel Dual cutting current range Filter and regulator group with automatic air impurity expulsion Robust ergonomic handle for easy manoeuvrability by wheels Electrode wearing and improper operation signalling Contact cutting possibility on low range without sliding blocks or other spacers Central connector for the torch (PLASMA PLUS 91) |
|||||
Technical Data |
PLASMA PLUS 56 |
PLASMA PLUS 91 | PLASMA PLUS 150 E | ||
Three phase input 50/60 Hz | V | 230/400 | 230/400 | 230/400 | |
Input Power @ I2 max | kVA | 13,8 | 23,9 | 38,8 | |
Delayed Fuse (I2 @ 100 %) | A | 25/16 | 40/25 | 63/40 | |
Power Factor / cos f | 0,67 | 0,65 | 0,82 | ||
Efficiency Degree | 0,55 | 0,61 | 0,71 | ||
Adjustament positions | No. | 2 | 2 | - | |
Current Range | A | 30-55 | 50-90 | 25-75 25-150 |
|
Duty cycle at utilizzabile al (40° C) | 100% 60% 35% |
A |
30 - 55 |
50 - 90 |
90 115 150 |
Cutting capacity | mm | quality | 12 18 |
20 25 |
40 50 |
severance | |||||
Standards | LVD
2006/95/EC EMC 2004/108/EC EN 60974-1 EN60974-7 EN 60974-10 EMC (CISPR 11): Class A |
LVD 2006/95/EC |
|||
Protection Class | IP | 23S | 23S | 23S | |
Dimensions | mm | p l h |
625 350 790 |
625 350 790 |
940 450 850 |
weight | Kg | 68 | 95 | 163 | |
Electronic Adjustment | |||||
Step Adjustment | |||||
+/- X% Mains Voltage compensation |

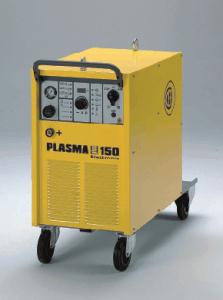

PLASMA PLUS 150E product data This powerful three-phase equipment, based on the latest evolution of the consolidated Thyristor technology, grants reliability and safety in any work condition. The innovating cutting current control system Total Wave Control TWC and the electronic adjustment allow to select the very best parameters in any application, granting superior cutting quality on any thickness and material . Plasma Plus 150 E enables the utilisation of different amperage torches, air or water cooled, by also automatically recognizing the used torch and changing the range of cutting currents for each fitted torch. The control panel helps the operator by automatically indicating the correct tip diameter to be used depending on both used torch and preselected cutting current. |
|||||
Technical Data |
PLASMA PLUS 56 |
PLASMA PLUS 91 | PLASMA PLUS 150 E | ||
Three phase input 50/60 Hz | V | 230/400 | 230/400 | 230/400 | |
Input Power @ I2 max | kVA | 13,8 | 23,9 | 38,8 | |
Delayed Fuse (I2 @ 100 %) | A | 25/16 | 40/25 | 63/40 | |
Power Factor / cos f | 0,67 | 0,65 | 0,82 | ||
Efficiency Degree | 0,55 | 0,61 | 0,71 | ||
Adjustament positions | No. | 2 | 2 | - | |
Current Range | A | 30-55 | 50-90 | 25-75 25-150 |
|
Duty cycle at utilizzabile al (40° C) | 100% 60% 35% |
A |
30 - 55 |
50 - 90 |
90 115 150 |
Cutting capacity | mm | quality | 12 18 |
20 25 |
40 50 |
severance | |||||
Standards | LVD
2006/95/EC EMC 2004/108/EC EN 60974-1 EN60974-7 EN 60974-10 EMC (CISPR 11): Class A |
LVD 2006/95/EC |
|||
Protection Class | IP | 23S | 23S | 23S | |
Dimensions | mm | p l h |
625 350 790 |
625 350 790 |
940 450 850 |
weight | Kg | 68 | 95 | 163 | |
Electronic Adjustment | |||||
Step Adjustment | |||||
+/- X% Mains Voltage compensation |
